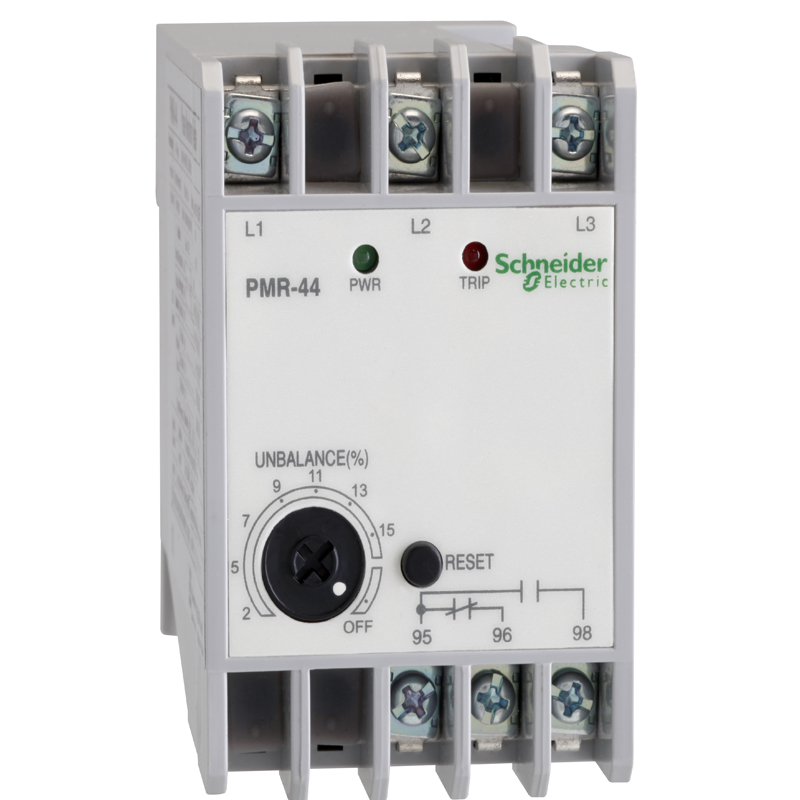

PMR 概述 √ 内置MCU（微处理控制器） √ 逆相/缺相/电压不平衡保护 √ 电压不平衡率 设定：2~15% √ 动作原因确认功能 √ 超强环境适应性 √ 故障安全操作

PMR 保护功能

√  电压不平衡           5秒

√  反转                  0.1秒

√  缺相                    1秒

PMR 技术参数

---

基本项目

---

产品范围                            EOCR

---

产品名称                            PMR

---

产品用途                            电压保护继电器

---

保护型电压                       Vm电压不平衡

---

电源类型                         AC

---

电源频率                              50…60 Hz

---

保护范围                              160…480 VDC

---



电气及机械特性

---

[ Us ]额定工作电压         220VAC/440VAC

---

包装方式                                纸盒

---

输出触点                              1NC/NO

---

[ Ue ]正常运行电压              电源电路  220 V DC 50...60 Hz IEC 60947-4-1

---

[Uimp]正击脉冲电压            6 kV IEC 60947-4-1

---

复位方式                                手动、断电、自动

---

脱扣时间                               O-Time : 0.2...10 s

                                             R-Time : 0.5...30 s

---

显示方式                               LED（2个）

---

功耗                                      2W

---

Tightening torque              1.7 N.m for control circuit - lug-clamp, cable - 7 mm head

---

长度                                         79.3mm

---

宽度                                         50mm

---

高度                                          106.5mm

---

重量                                          0.21kg

---

使用环境

---

标准                                            IEC 60947-4-1

---

IP等级                                        IP20 IEC 60529

---

使用温度                                   -20...60 °C IEC 60947-4-1

---

存储温度                                     -30...80 °C

---

海拔                                             2000 m

---

阻燃性                                         650 °C IEC 60695-2-12     960 °C UL 94

---

耐冲击性                                      15 gn for 11 ms IEC 60068-2-7

---

耐震性                                           4 gn 판넬 취부 IEC 60068-2-6

---

내서지                                           6 kV IEC 61000-4-5

---

[Ith]连续通电电流                        5A

---

容许电流                                      5A 250VAC

---

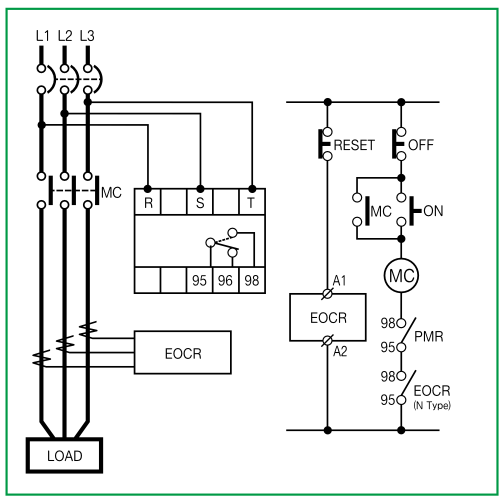

PMR 接线图

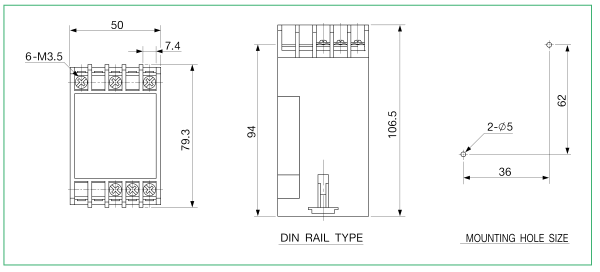

PMR 外形尺寸

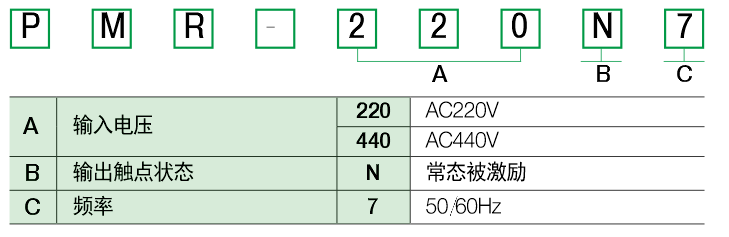

EOVR 选型表
