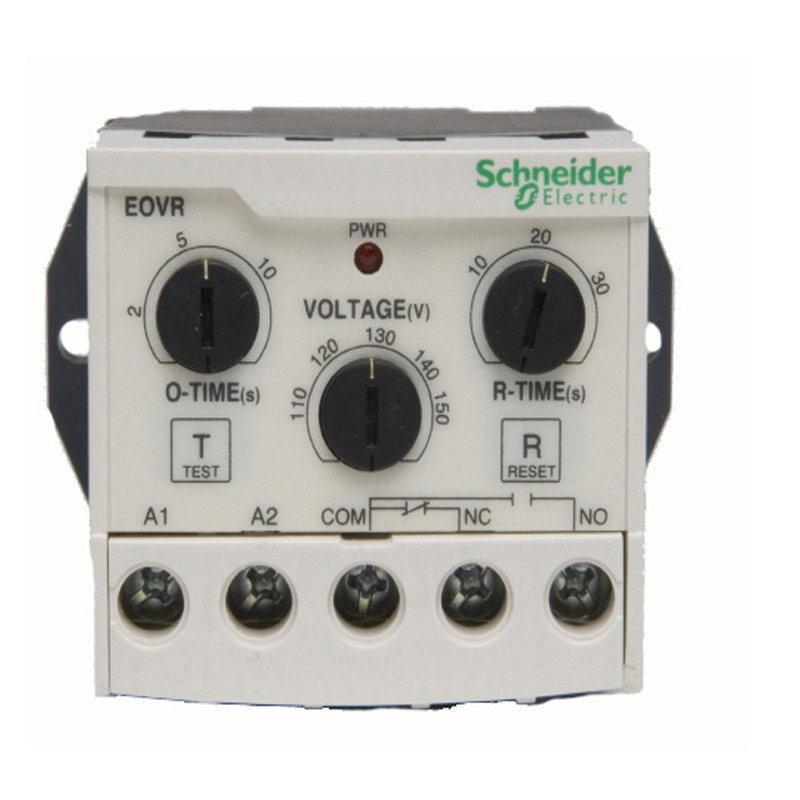

EOVR 概述 √ 超小型 √ 过电压保护 √ 单相用 √ 可连续可变设定的宽电压设定范围 √ 当前实时电压确认及显示动作状态的LED √ 采用信号储存预防电路，间歇式电压变动时可稳定运行 √ 超强环境适应性 √ 仅生产R型产品

EOVR 保护功能

 交流过电压脱脱扣时间             O-Time

 自动复位时间                           R-Time

EOVR 技术参数

---

基本项目

---

产品范围                            EOCR

---

产品名称                            EOVR

---

产品用途                            电压保护继电器

---

保护型过电压                     Vm＞过电压设置

---

电源类型                            AC

---

电源频率                            50…60 Hz

---

保护范围                              110：110…150 VDC     220：220…300 V       380:380…460 VDC

---



电气及机械特性

---

[ Us ]额定工作电压       110VAC/220VAC/380VAC

---

包装方式                                纸盒

---

输出触点                              1NC/NO

---

[ Ue ]正常运行电压              电源电路  220 V DC 50...60 Hz IEC 60947-4-1

---

[Uimp]正击脉冲电压            6 kV IEC 60947-4-1

---

复位方式                                手动、断电、自动

---

脱扣时间                               O-Time : 0.2...10 s

                                             R-Time : 0.5...30 s

---

显示方式                               LED（1个）

---

功耗                                      2W

---

Tightening torque              1.7 N.m for control circuit - lug-clamp, cable - 7 mm head

---

长度                                         44mm

---

宽度                                         54mm

---

高度                                          65mm

---

重量                                          0.139kg

---

使用环境

---

标准                                     IEC 60947-4-1

---

IP等级                                        IP20 IEC 60529

---

使用温度                                   -20...60 °C IEC 60947-4-1

---

存储温度                                     -30...80 °C

---

海拔                                             2000 m

---

阻燃性                                         650 °C IEC 60695-2-12     960 °C UL 94

---

耐冲击性                                      15 gn for 11 ms IEC 60068-2-7

---

耐震性                                         4 gn 판넬 취부 IEC 60068-2-6

---

내서지                                       6 kV IEC 61000-4-5

---

[Ith]连续通电电流                        5A

---

容许电流                                      5A 250VAC

---

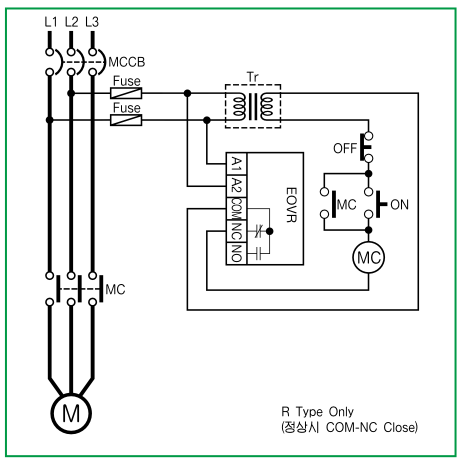

EOVR 接线图

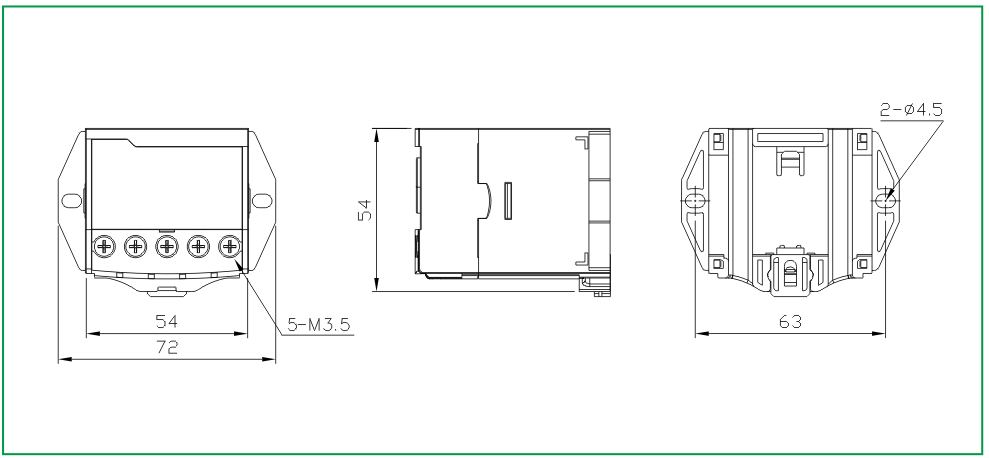

EOVR 外形尺寸

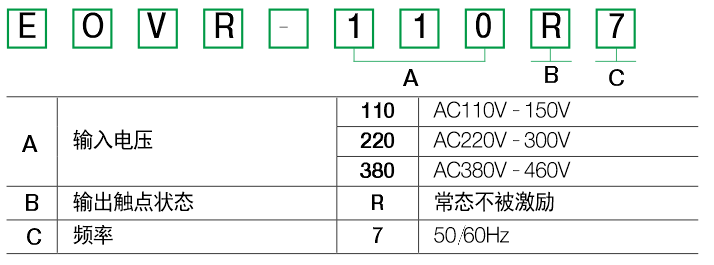

EOVR 选型表
