概述 √ 适用于EOCR（反时限）大容量负载保护时使用 √ 过电流定数：10 √ 电子式过电流继电器专用

技术参数

---

 电流互感器变比                             100：5

                                                      150：5

                                                      200：5

                                                      300：5

                                                      400：5

---

精度（等级）                                ±3.0%（10P10）

---

额定容量                                        1.25VAC（5VA：基于计量等级）

---

 二次侧电流                                    5A

---

绝缘电压                                        AC600V

---

绝缘耐压                                       3KV

---

绝缘电阻                                       10MΩ（DC500V 兆欧表）

---

安装方式                                      35mm DIN Rail/Panel

---

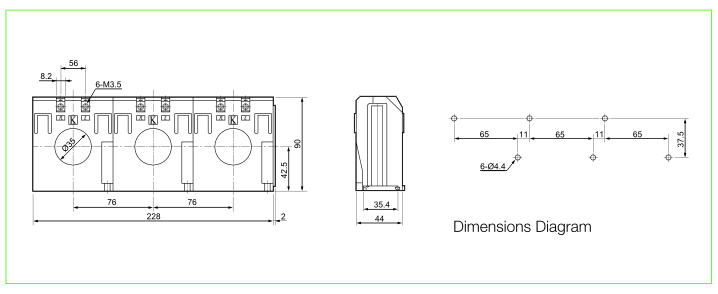

外形尺寸

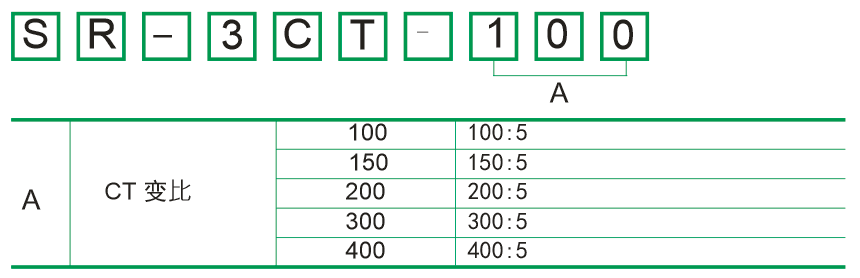

产品订购
